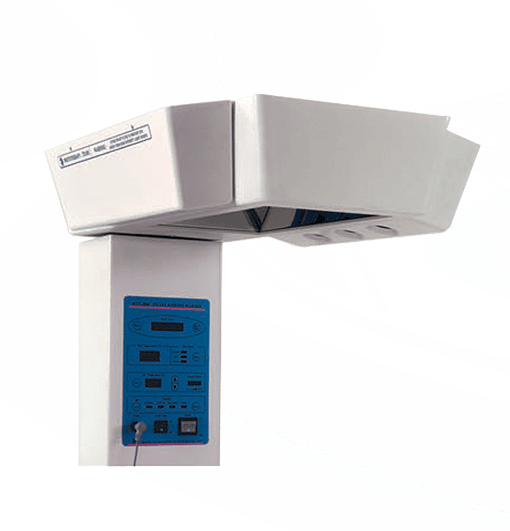

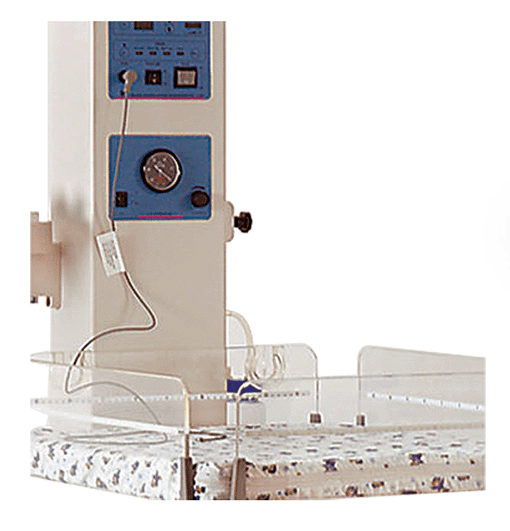

Click to see big picture	Product Name：Infant Radiant Warmer
	Product Model：135310-209
	Production brand：Dental Chair Unit,Dental Equipment,Dental Instrument,Dental Supply,Hospital furniture

Product details

STANDARD COMPOSITION:
Temperature Control Mode: per-heating control, servo control & manual control;
Instant Parameter Display: Set temp, skin temp, heat power rate;
Built- in APGAR Timer and >37℃ preset function
Audible/ Visual Alarms: temp deviation, Sensor failure, power failure, temp override;
Tilting Bed and Rotary Radiant Head;
X-ray Cassette Tray under infant bed, examination light of high illuminance ;
Use anti-blast quartz infrared tube as radiant hearing source.

Optional Deice (At Buyers’ Selection):
XYQ1003 Intra Low-pressure suction.

TD1001 Phototherapy Lights
Mounting beside radiant heard of infant Radiant Warmer.

	BNT--1000	BNT--2000	BNT-2000(B)
Operational condition:
Environment temperature	+18℃--+30℃	+18℃--+30℃	+18℃--+30℃
Environment relative humidity	30%---75%	30%---75%	30%---75%
Environment air velocity of flow	<0.3m/s	<0.3m/s	<0.3m/s
Power requirement	≤1000VA	≤1000VA	≤1000VA
Temperature control mode	Auto	Pre-heat, auto and manual	Pre-heat, auto and manual
Temperature control range	25℃--37℃	25℃--37℃	25℃--37℃
Temperature override mode to	-----	38℃	38℃
Temperature sensor accuracy	≤0.3℃	≤0.3℃	≤0.3℃
Mattress temperature uniformity	≤2.0℃	≤2.0℃	≤2.0℃
Temperature rise time	≤45 min	≤45 min	≤45 min
Radiant box horizon angle adjust range	0--±90°step-less	0--±90°step-less	0--±90°step-less
Mattress Tray Size	68*56cm	68*56cm	68*56cm
Mattress tilt adjust range	0--±10°step-less	0--±10°step-less	0--±10°step-less
Mattress tray Max. load	10kg	10kg	10kg
Transfusion pole Max .load	2kg	2kg	2kg
Shelf Max. load	2kg	2kg	2kg
X-ray shelf	Yes	Yes	Yes
RS-232 Connector	----	Yes	Yes
Mattress to Radiant box	81cm	81cm	81cm
Heater infrared wave length	1--3µm	1--3µm	1--3µm
APGAR Timer	-----	Yes	Yes
Alarms
Power failure alarm	Yes	Yes	Yes
Sensor failure alarm	Yes	Yes	Yes
Temperature deviation alarm	±1.0℃	±1.0℃	±1.0℃
Over temperature alarm	≤38.0℃	≤38.0℃, ≤39.0℃	≤38.0℃, ≤39.0℃

Low-pressure suction	------	------	Yes
Pressure adjust range	------	-----	0-22Kp(0-165mmHg)
Operating noise	-----	-----	≤55 dB
White Phototherapy light	-------	-------	1 set
7L Oxygen cylinder (with oxygen manometer & oxygen flow meter )	-------	--------	2 sets
Neonate resuscitation bag	------	-----	1 set
Packing size	11090110cm	11090110cm	11090110cm
Net weight	85 kg	85 kg	85 kg
Gross weight	115 kg	115 kg	125 kg
